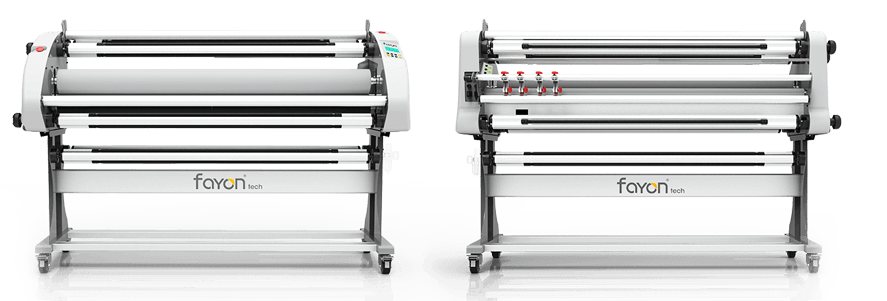

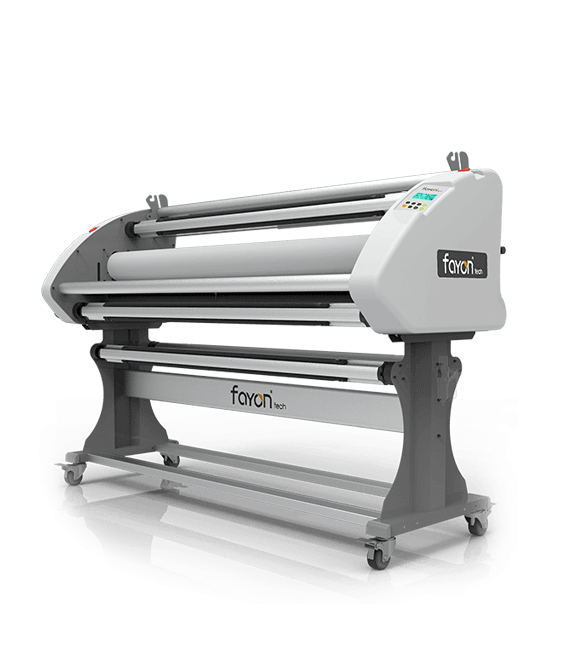

Auto High-Speed Cold/Hot  Laminator FAYON 1600SE

Auto High-Speed Cold/Hot Laminator FAYON 1600SE

Unique Body Structure and Appearance Design
Design and manufacture this professional, strong and durable laminator, aimed at guarantee the user's
high quality processing effect and fast finished output everyday.

Auto High-Speed Cold/Hot  Laminator FAYON 1600SE
Henan Yingkai Technology Development Co.ltd.

Material sensing & Auto-stop System

Realize unattended, prevent accidents

AUTO HIGH-SPEED cold/hot laminator FAYON 1600SE

Application:

Self-adaptive coated thickness, adjustable laminating pressure,fit for laminate rolling media and flat surface board.

Simple operation,  wide suitability, dependable safety, multiple functions.

● Professional sturdy and robust laminator designed to guarantee every day high quality results with great speed (on demand up to 25 m/min)

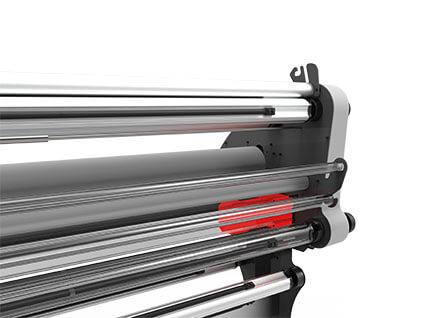

● 64’’ ALUMINUM SHAFTS (total 4 shafts) for easy loading and unloading of the rolls

It can support big and heavy rolls with diameter up to 200 mm (8 in.) thanks to the increased distance between rollers and support shafts

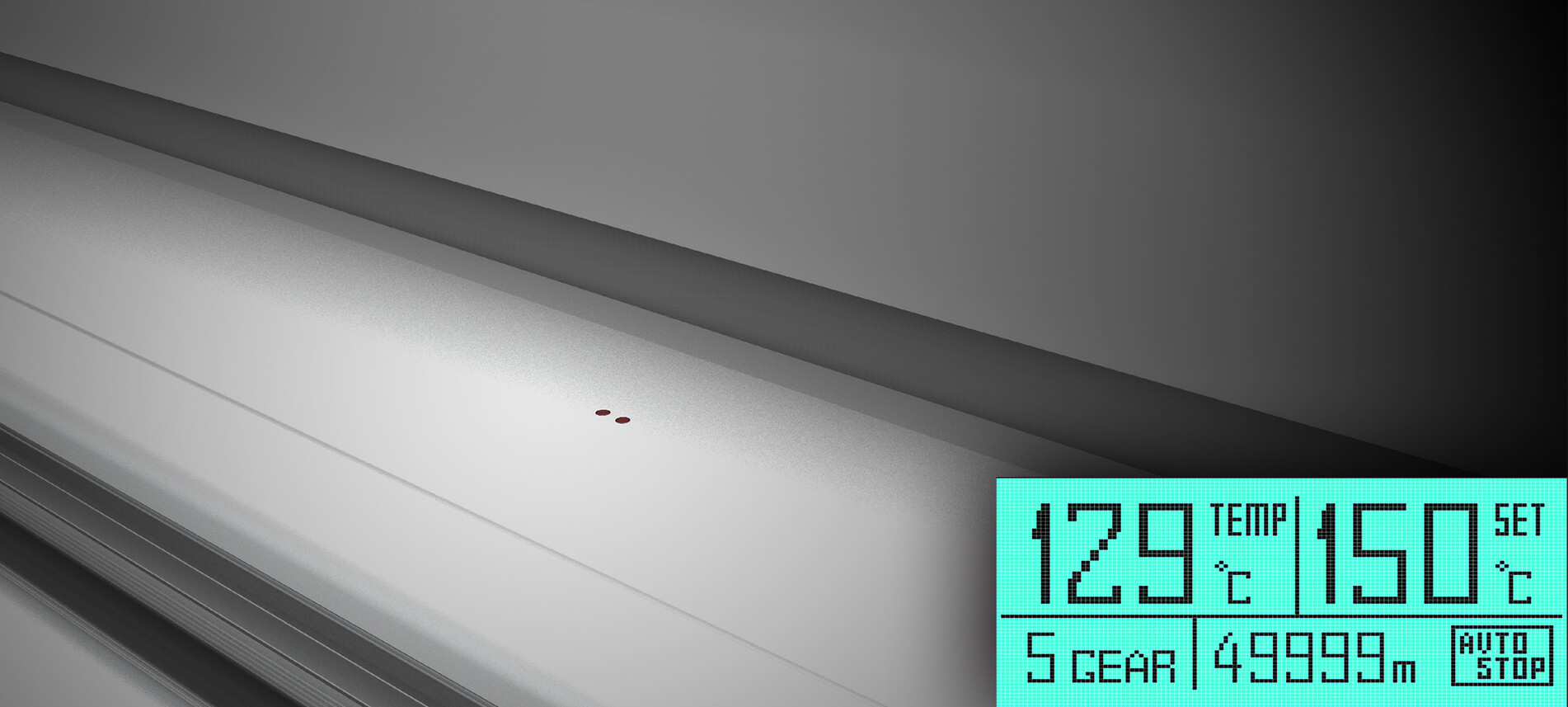

● Heated upper roller with preset electronic temperature regulation - standard on FAYON 1600 model
(Room- 125°C) (room - 257°F)

● Ideal for mounting images on panels even of large dimensions, solutions applying at the same time with a plastic film or an adhesive for single-side mounting

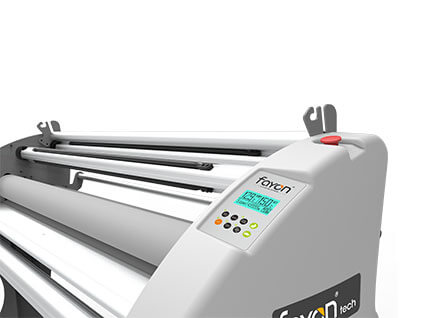

● Intuitive set up parameters thanks to the user- friendly control panel

Henan Yingkai Technology Development Co.ltd.
Henan Yingkai Technology Development Co.ltd.

AUTO HIGH-SPEED cold/hot laminator FAYON 1600SE

Automatic Hot/cold laminator FY-1600SE is a professional equipment in the printing and post-processing, cater to your varying needs, widely used in the advertising, exhibition organizers, picture production, studio and many other fields, become the most ideal corollary

  • Henan Yingkai Technology Development Co.ltd.
  • Henan Yingkai Technology Development Co.ltd.
  • Henan Yingkai Technology Development Co.ltd.



Technical Data

AUTO COLD/WARM ROLL TO ROLL LAMINATOR 1600SE
Machine dimension Packing dimension  Weight
220cm*60CM*120CM 225CM*82CM*80CM 1.4CBM 280KGS
Model 1600SE
Max laminating width 1620mm
Max lamination thickness 35mm
Max speed 25m/min
Max temp room~125℃
Roller upgrade Air cylinder
Roller Silicon
Heating Infrared
Preheating 10-15min
Power input 0.8-1.0kw/h
Volt 110/220v
N.W. 280kgs
