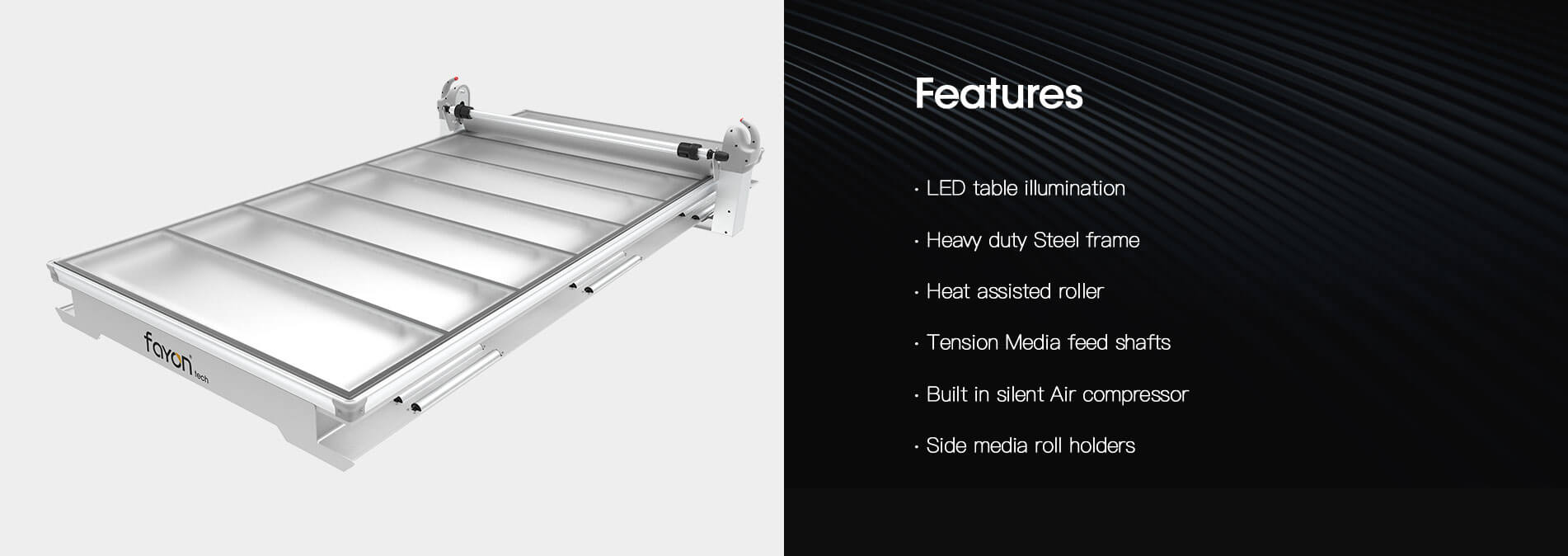

FAYON Flatbed Workstation

FAYON Flatbed Workstation

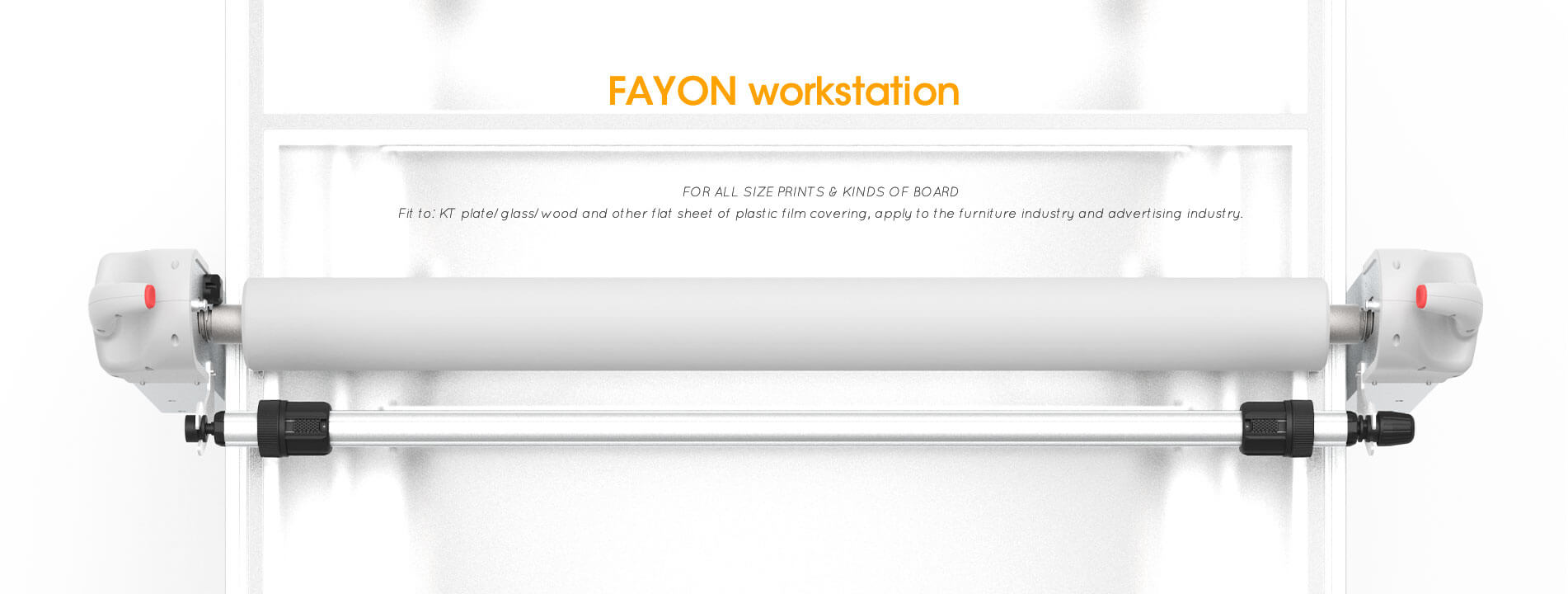

FOR ALL SIZE PRINTS & KINDS OF BOARD Fit to: KT plate/glass/wood and other flat sheet of plastic film covering, apply to the furniture industry and advertising industry.

FAYON Flatbed Workstation
Henan Yingkai Technology Development Co.ltd.
Henan Yingkai Technology Development Co.ltd.

Many Applications with one Machine

Henan Yingkai Technology Development Co.ltd.

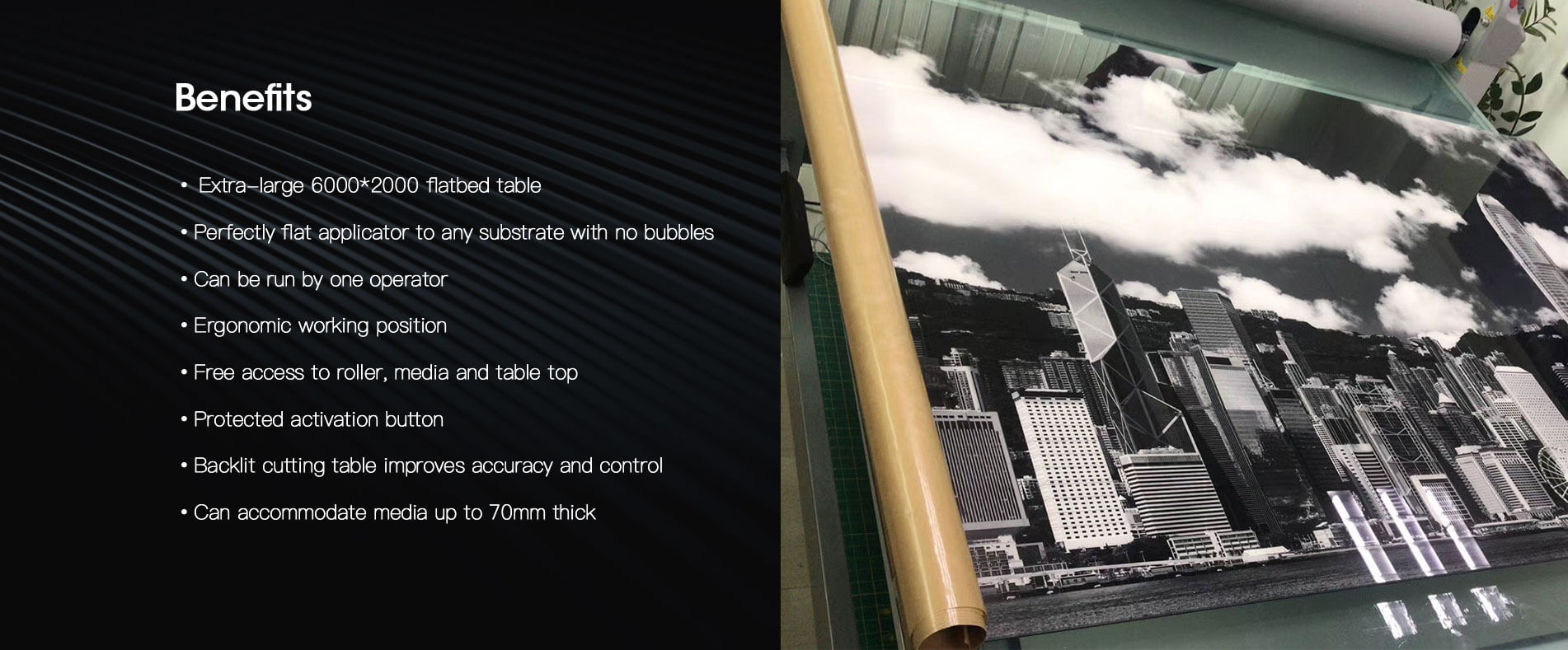

Whether you’re pre-masking cut letters, mounting prints onto boards or laminating, the FAYON flatbed applicator will help you do the job without wrinkles or bubbles resulting in a smooth finish everytime. Even over size prints can be finished with ease.

What’s more, it can be run with one operator making your shop more efficient!

Let Your Work Table Work for You.

Every shop has a work table, why not invest in a flatbed applicator work table taht apply, mount, laminate, backlight and much more in the same space? When not use applying, it can also be used as a standard cutting table.

Henan Yingkai Technology Development Co.ltd.

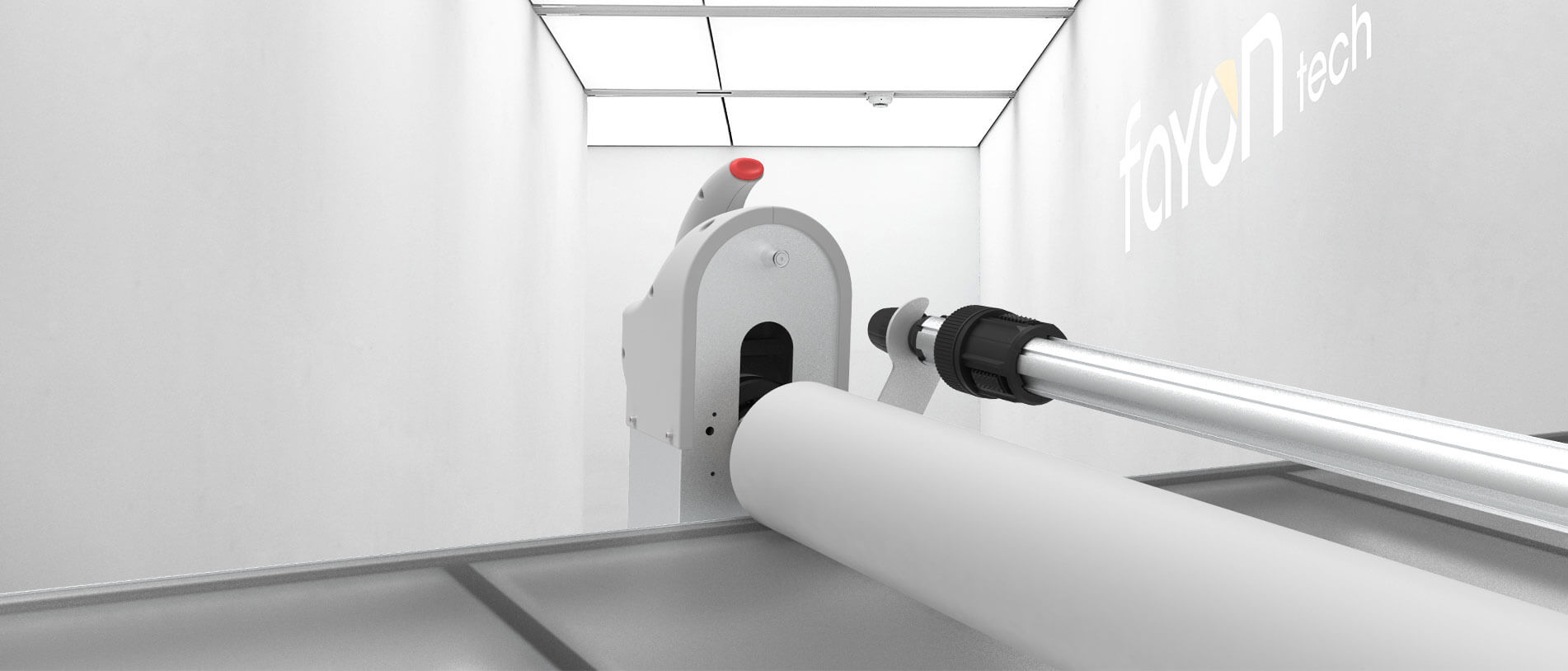

One Button Control

The table roll lifting is controlled by
electromagnetic valve
can stands 200,000 times reciprocation.
According to the gripping habits of human palms,
it is allowed to operate
the Silica roller lifting while moving the gantry.

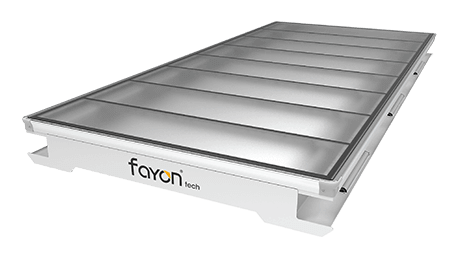

Slim but strong Machine Body

Pure Alloy Aluminum Profile structure

Laboratory level flat surface

10mm thickness Tempered Glass

Anti-scraching and withstand impact

All corners and edges are rounded

Henan Yingkai Technology Development Co.ltd.

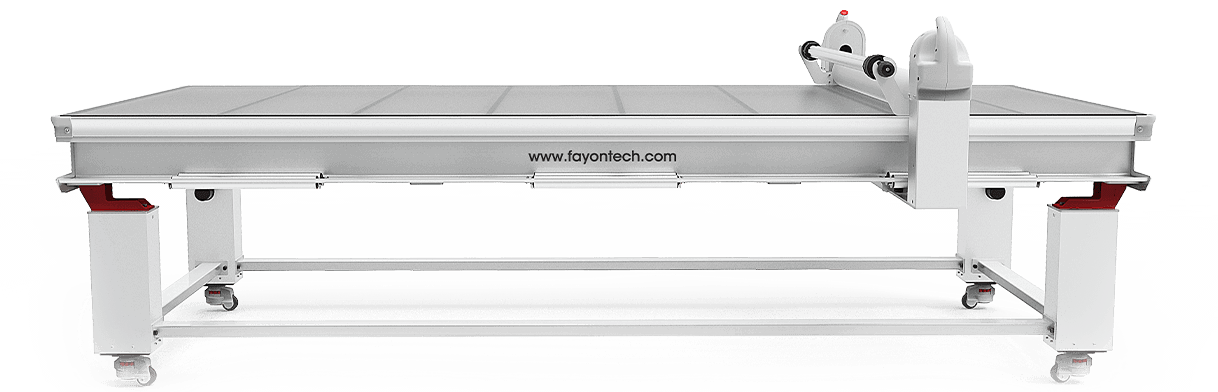

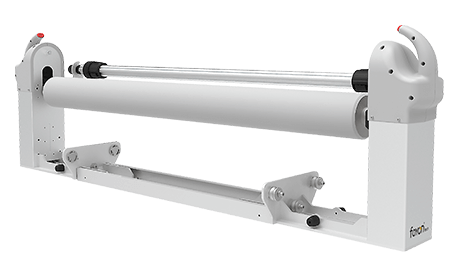

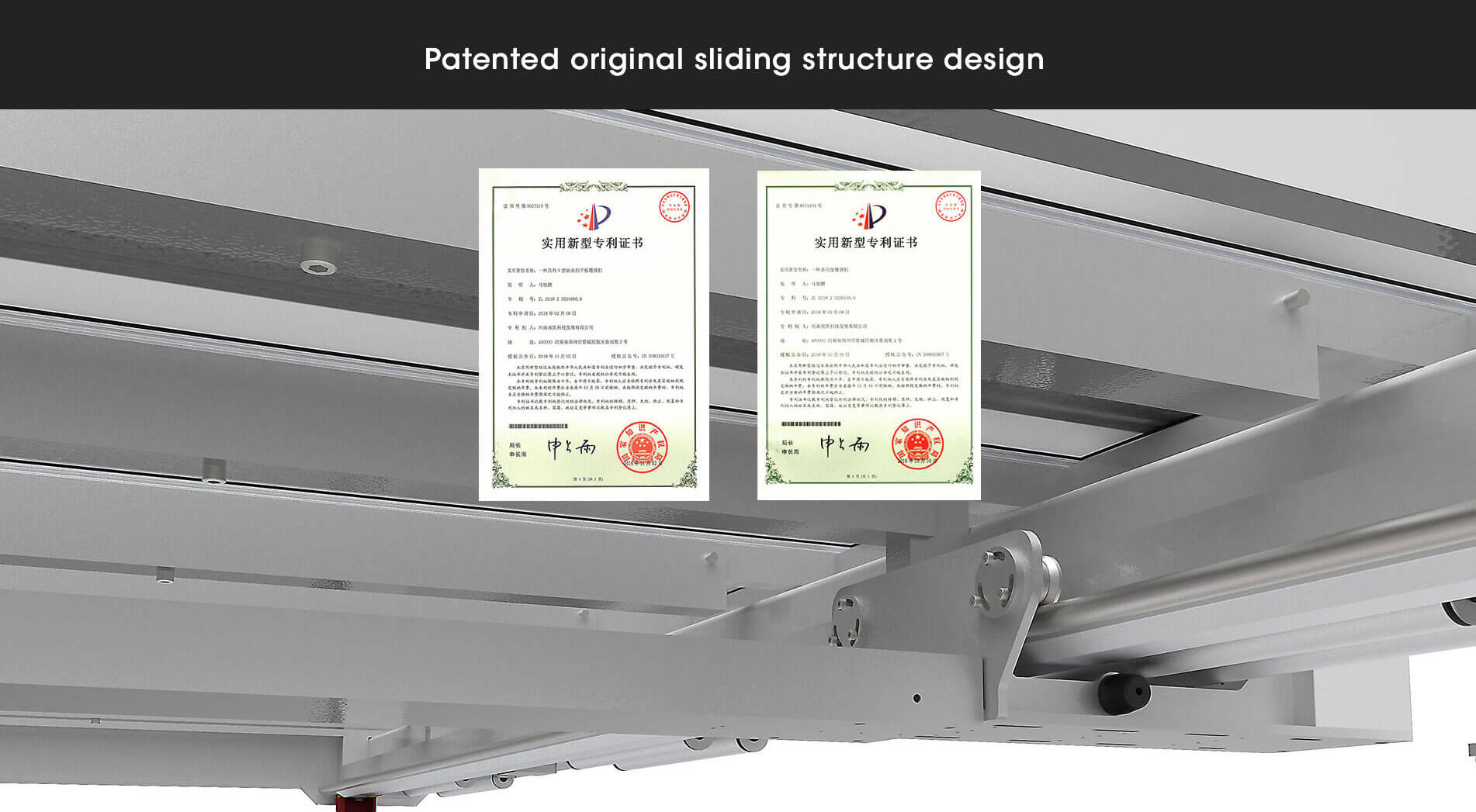

Free Gantry Design

Ensure there is nothing but the roll on the

table, no longer need to pass the materials

under the gantry, greatly simplify user

operations.

Henan Yingkai Technology Development Co.ltd.

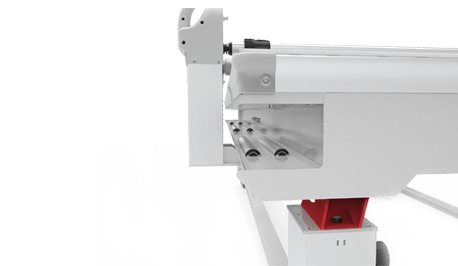

Exclusive design of side-porket holders

Invention Patent protection

Allowed the roll materials rolling in the

side porket.

Avoid any damage for the prints.

The holders could be removed easily if no use.

Henan Yingkai Technology Development Co.ltd.

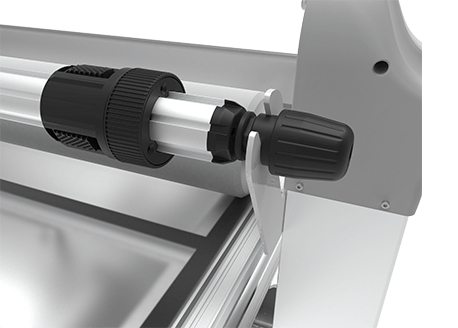

Exclusive design of mechanical tension device

We chose the rectangular spring to get the

process of increasing friction more smoothly

and continuously, result in a better control of

materials tension.

Invention Patent protection

Tight and fix the core by twisting the black ring

outter, which can keep the whole locking

continuous stable.

Henan Yingkai Technology Development Co.ltd.
Henan Yingkai Technology Development Co.ltd.
Henan Yingkai Technology Development Co.ltd.

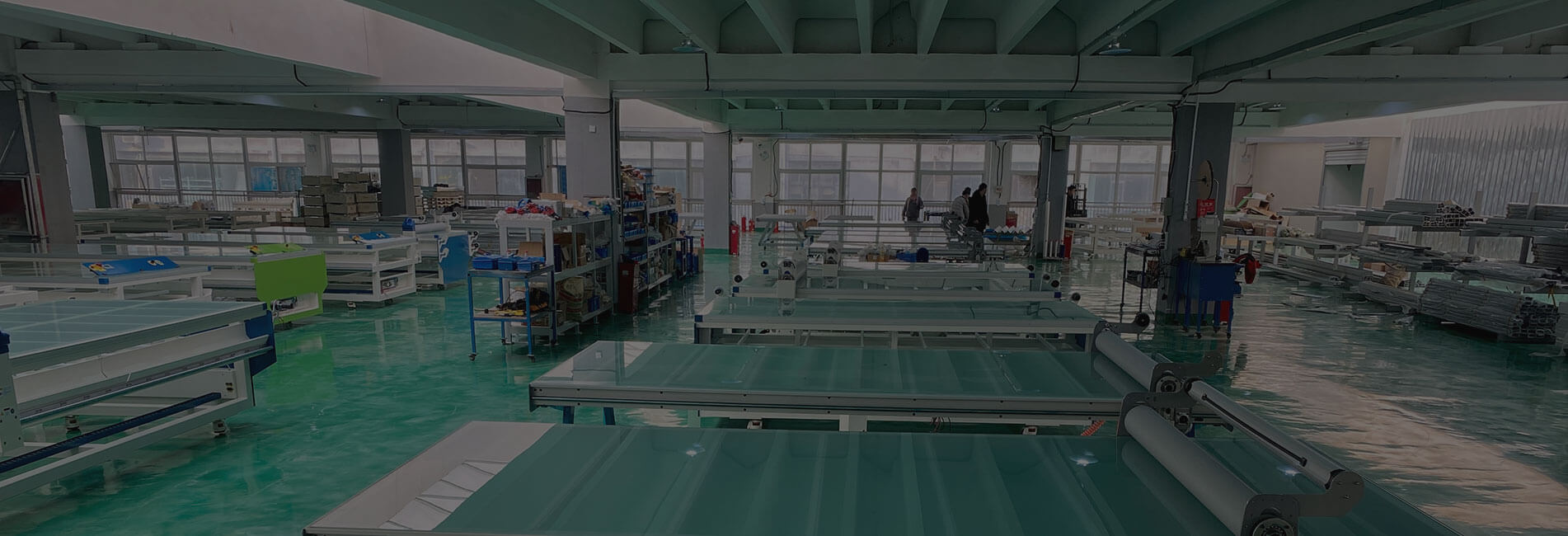

Production

FAYON manufacturer from start to finish at our own factory in Henan, China-from the welding of the steel chassis to final assembly and testing. Keeping the whole production process in-house gives us full control over quality and greater flexibility with regard to design changes, customizationand production improvement.

Optional Configurations

  • Henan Yingkai Technology Development Co.ltd.

    Dusty cleaning Tools

    Easily clean the prints surface by simple rolling on it.
  • Henan Yingkai Technology Development Co.ltd.

    Madie EZ-Holder

    Help user loading the materials rolls easily, easy the rolls rewinding
  • Henan Yingkai Technology Development Co.ltd.

    PVC cutting mat

    Protect the top of table glass

Technical Data

Model FY-1325 FY-1530 FY-1737
Max laminating size 1300/2500mm 1500/3000mm 1700/3700mm
Max laminating thickness 50mm 50mm 50mm
Operation type Manual Manual Manual
Max temp Room~60℃ Room~60℃ Room~60℃
Roller upgrade Air cylinder Air cylinder Air cylinder
Preheating 10-15min 10-15min 10-15min
Power input 0.8~1.0kw/h 0.8~1.0kw/h 0.8~1.0kw/h
Pressure range 0~0.8Mpa 0~0.8Mpa 0~0.8Mpa
N.W 660kgs 880kgs 1000kgs
