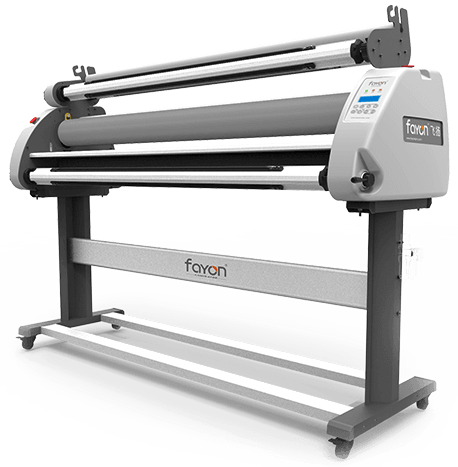

Automatic Hot/Cold  laminator FY-1600DA

Automatic Hot/Cold laminator FY-1600DA

Professional sturdy and robust laminator designed to guarantee every day high quality results with great speed (on demand up to 10 m/min) 64’’ ALUMINUM SHAFTS (total 4 shafts) for easy loading and unloading of the rolls.
It can support big and heavy rolls with diameter up to 160 mm (6.3 in.) thanks to the increased distance between rollers and support shafts.
Heated upper roller with preset electronic temperature regulation - standard on FAYON 1600 model (Room- 60°C) (room - 140°F).
Ideal for mounting images on panels even of large dimensions, solutions applying at the same time with a plastic film or an adhesive for single-side mounting.
Intuitive set up parameters thanks to the user- friendly control panel.

Automatic Hot/Cold  laminator FY-1600DA
Henan Yingkai Technology Development Co.ltd.

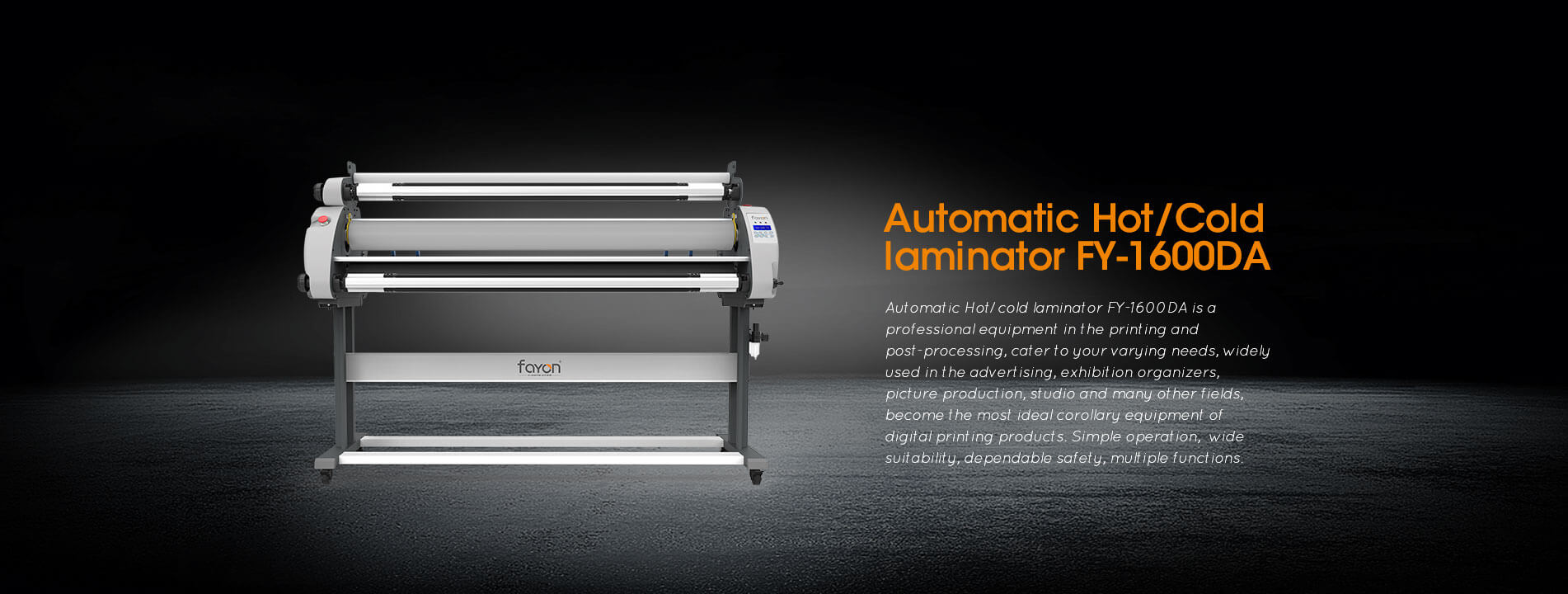

Automatic Hot/cold laminator FY-1600DA

Automatic Hot/cold laminator FY-1600DA is a professional equipment in the printing and post-processing, cater to your varying needs, widely used in the advertising, exhibition organizers, picture production, studio and many other fields, become the most ideal corollary

Henan Yingkai Technology Development Co.ltd.
  • Henan Yingkai Technology Development Co.ltd.
  • Henan Yingkai Technology Development Co.ltd.

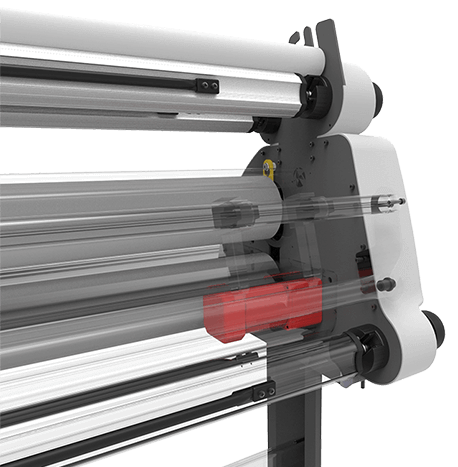

Enhanced Motor:

120KW Constant Torque Geared Motor

Guarantee the powerful supply at low speed,

stability at hign speed.

Henan Yingkai Technology Development Co.ltd.
Henan Yingkai Technology Development Co.ltd.

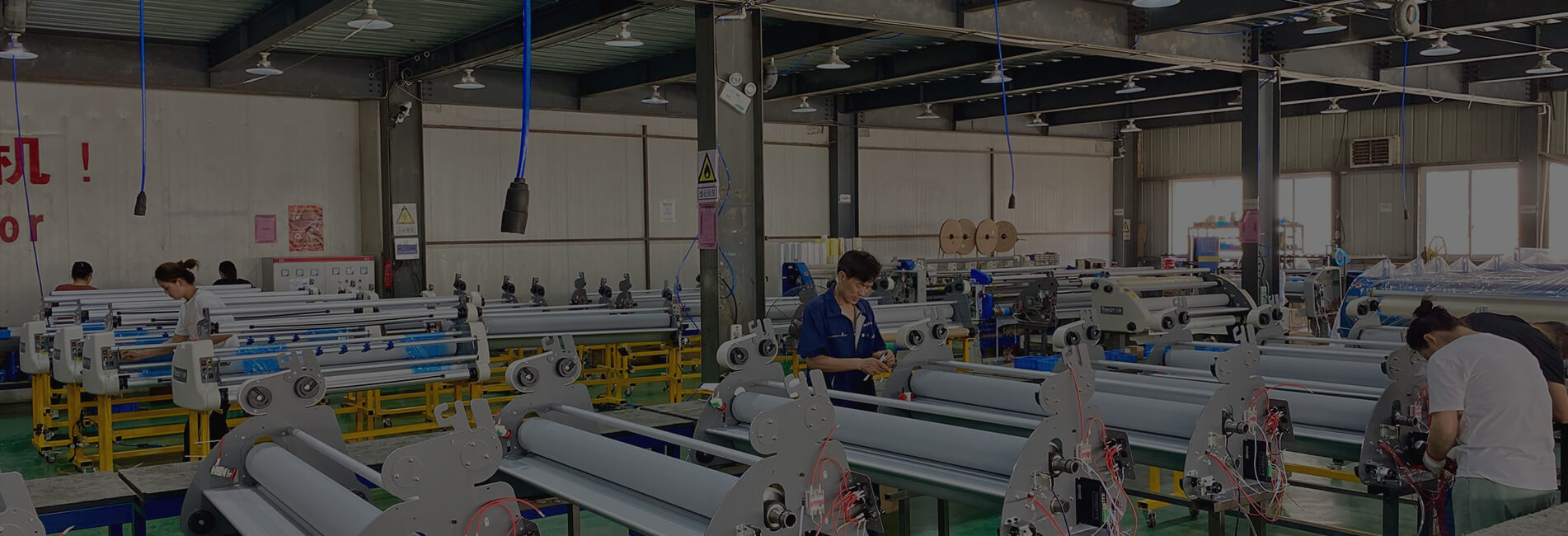

Production

FAYON manufacturer from start to finish at our own factory in Henan, China-from the welding of the steel chassis to final assembly and testing. Keeping the whole production process in-house gives us full control over quality and greater flexibility with regard to design changes, customizationand production improvement.



Technical Data

AUTO COLD/WARM ROLL TO ROLL LAMINATOR 1600DA
Machine dimension Packing dimension Weight
200cm*60CM*120CM 227CM*77CM*74CM 1.3CBM 210KGS
Model 1600DA
Max laminating width 1620mm
Max lamination thickness 35mm
Max speed 10m/min
Max temp room~60℃
Roller upgrade Air cylinder
Roller Silicon
Heating Infrared
Preheating 10-15min
Power input 0.8-1.0kw/h
Volt 110/220v
N.W. 210kgs
